Advantages

  • Maximum Recipe Flexibility

    Support for both dry and liquid conching enables the processing of high quality dark and milk chocolate as well as creams and compounds for maximum recipe flexibility.

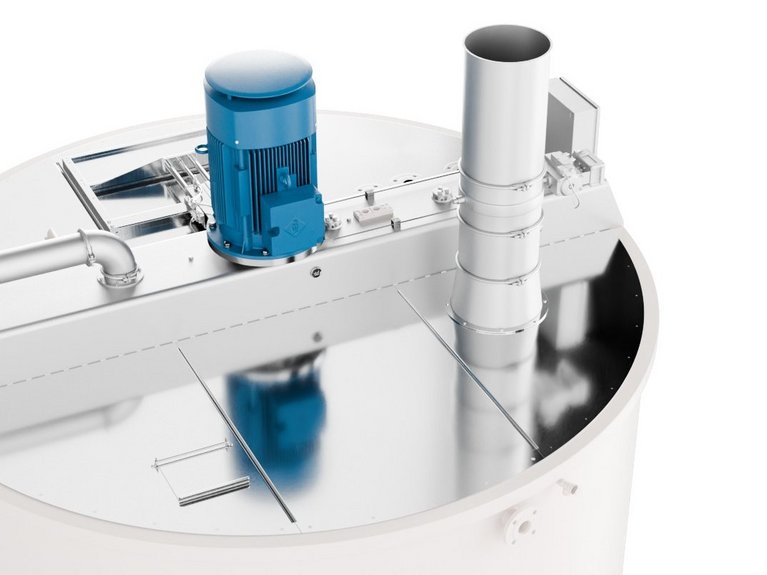

    3d rendering side view of BCV Batch Conche Vertical
  • Maximum Product Quality

    Advanced shaft design ensures efficient heat transfer, gravity-assisted kneading and stress distribution, while uniform particle coating produces a smooth, creamy texture and ideal rheology for maximum product quality.

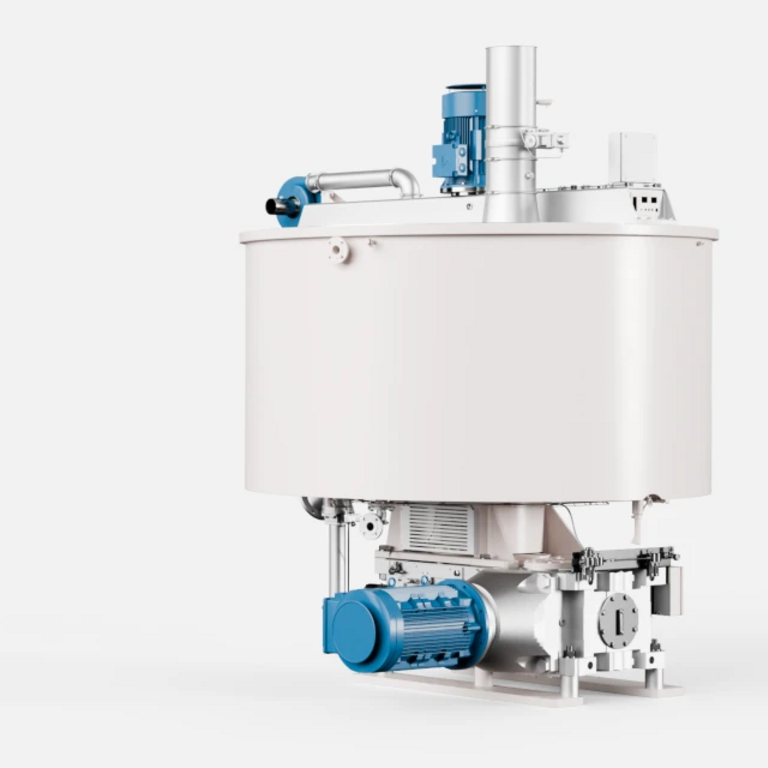

    3d rendering side view of BCV Batch Conche Vertical
  • Maximum Throughput

    Advanced control of conche headspace via the Flavor Monitoring Cockpit enables quality-driven conching for consistently high product quality, shorter conching times, and maximum throughput.

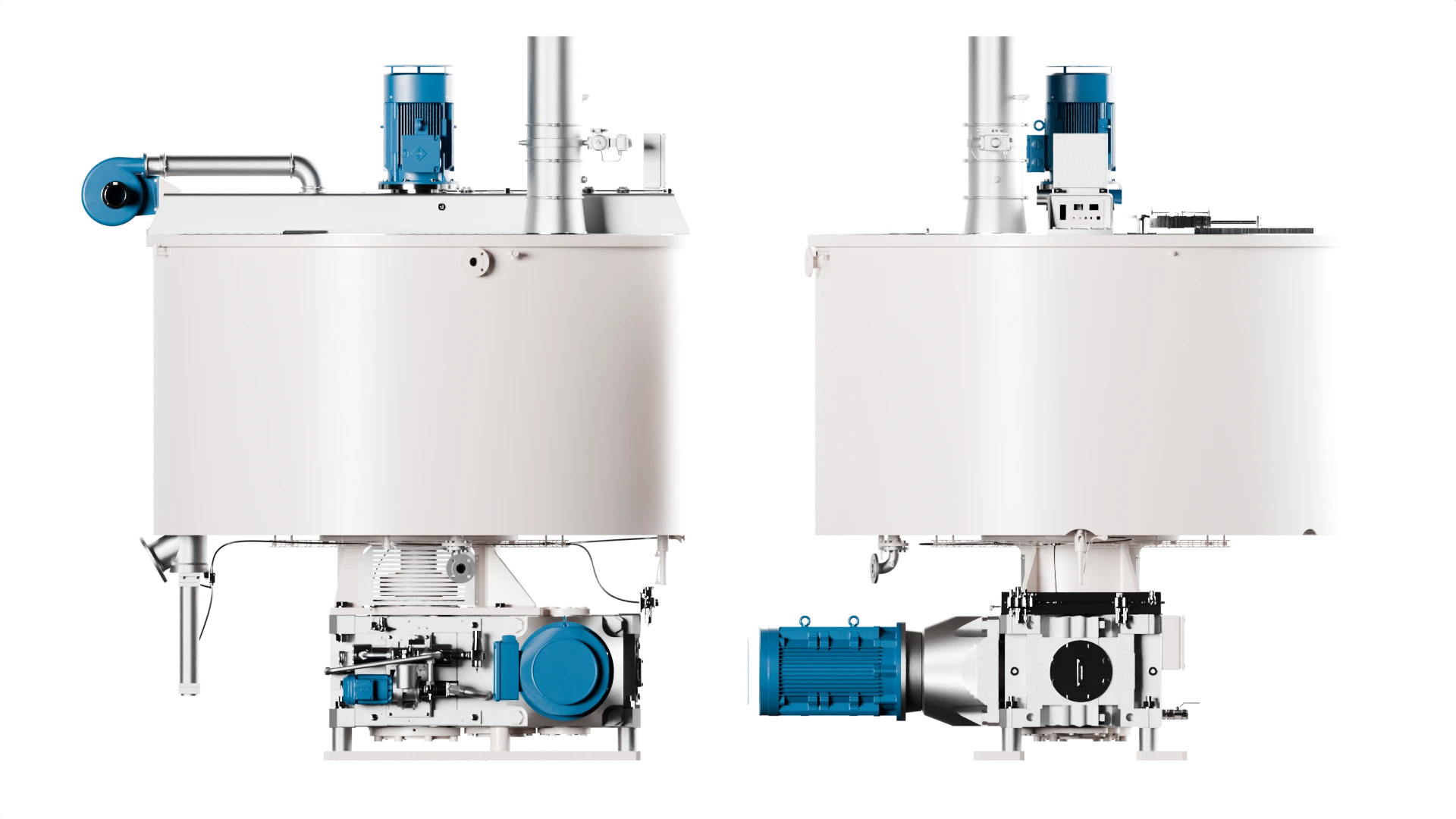

    3d rendering side view of BCV Batch Conche Vertical

Built to solve. Designed to deliver.

Designed for premium chocolate production, the Petzholdt BCV Batch Conche Vertical delivers exceptional results, especially in the production of dark and high-quality milk chocolate. It supports both totally dry conching and liquid conching for masses or creams, thanks to its integrated spraying device. Ideal for frequent recipe changes and artisan chocolate applications, the BCV is the solution for flexible, high-performance conching.

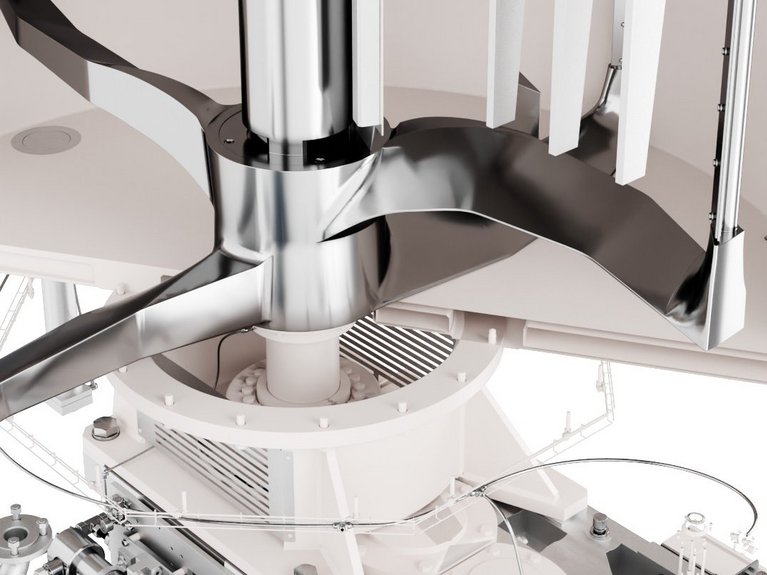

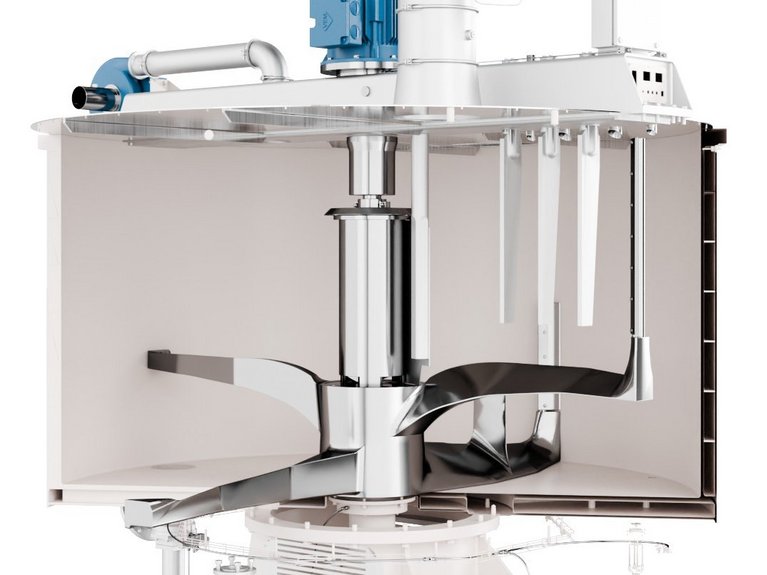

The BCV shaft features an agitator arm that scrapes the batch surface for superior heat transfer, while inner arms use gravity to ensure efficient kneading and stress distribution. This promotes uniform cocoa butter redistribution, volatile removal and improved viscosity.

An integrated spray homogenization unit enables optional liquid conching, and flavor is further refined by Maillard reaction enhancement through the controlled conche headspace, managed by the Flavor Monitoring Cockpit and air conditioning system.


3d rendering side view of BCV Batch Conche Vertical

VERSIONS

 BCV 2000BCV 4000BCV 6000
Capacity [kg/batch]2,0004,0006,000
Capacity [kg/h]3336671,000
Connected Load [kW]99120160
