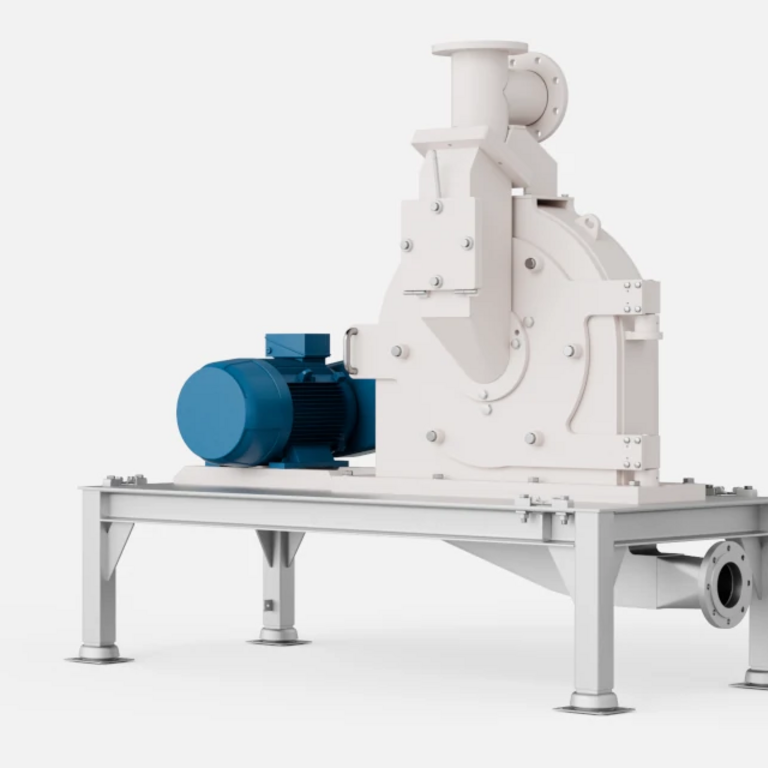

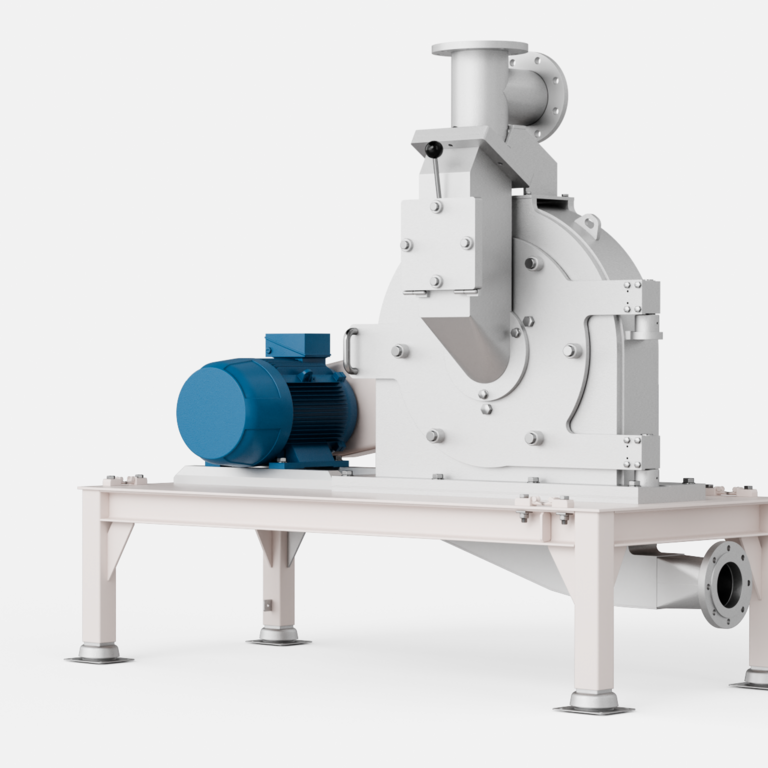

UM Universal Mill
Grinding of sugar, spices, herbs, starches, dairy products, legumes, grains and seeds, salt, gypsum and limestone
Advantages
-
Maximum Application Flexibility
-
High-Efficiency Operation
-
Scalable and Configurable Design
Built to solve. Designed to deliver.
The Bauermeister Universal Mill (UM) has been expertly engineered for precise grinding of ingredients such as sugar, spices, herbs, starches and dairy products. Designed with flexibility in mind, it excels at medium, fine and ultra-fine grinding. This makes it ideal not only for modern food innovations, such as grinding legumes, grains and seeds, but also for grinding materials such as gypsum, limestone and salt.
The UM uses a high-volume air stream to feed the product directly into its standard grinding element: the high-speed turbo rotor. As material enters the system, particles are progressively reduced in size through the intense interaction between the rapidly rotating rotor and a stationary grinding element, ensuring consistent, fine results.
Designed for versatility, the UM features interchangeable grinding components that can be tailored to a wide variety of processing requirements. Available in seven sizes, it can handle a broad range of particle sizes and throughput demands, making it ideal for both small-batch and large-scale production environments.
VERSIONS
| Versions | UM 0.3 | UM 1.3 | UM 2.3 | UM 3.3 | UM 4.3 | UM 5.3 | UM 6.3 |
|---|---|---|---|---|---|---|---|
| Capacity Factor | 1 | 1.8 | 3.2 | 4.9 | 7.3 | 11 | 20.4 |
| Inner Diameter [mm] | 220 | 310 | 450 | 600 | 800 | 1,000 | 1,200 |
| Connected Load [kW] | 11 | 18.5 | 37 | 55 | 90 | 132 | 200 |
