PROBAT

UW Series

Roll Grinder

Grinding Stages:

2–3
Throughput (kg/h):

190–2,570
Particle Size Spectrum:

Microfine to filter

Advantages

Maximum Product Flexibility

Thanks to its modular design, the grinder offers maximum flexibility when producing a wide variety of ground coffees, ranging from coarse to super-fine.
Maximum Reproducibility

The corrugated grinding rolls ensure an optimum particle size range and highly homogeneous grinding.
Maximum Availability

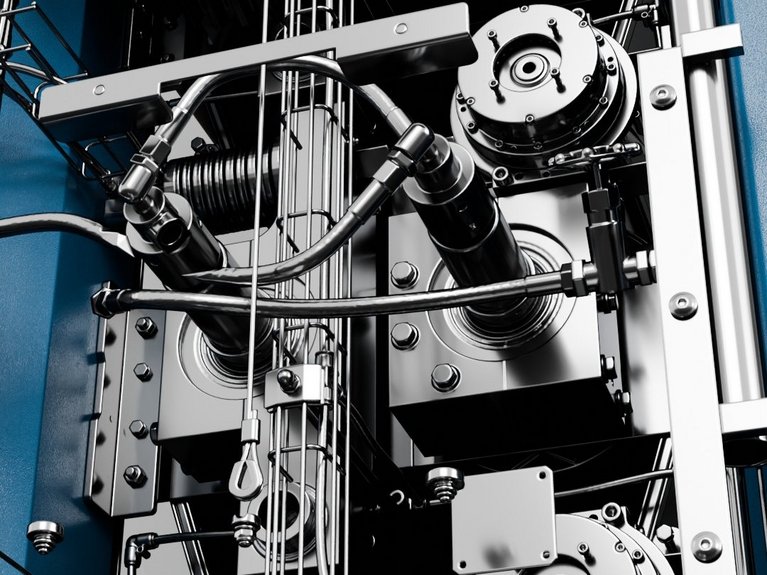

The innovative hygienic design, featuring permanently lubricated roller bearings and special protective mechanisms, ensures trouble-free, low-wear operation and maximum uptime.
Maximum Product Quality

Water cooling of the rolls limits temperature increase during grinding and compaction, ensuring maximum aroma protection.

Built to solve. Designed to deliver.

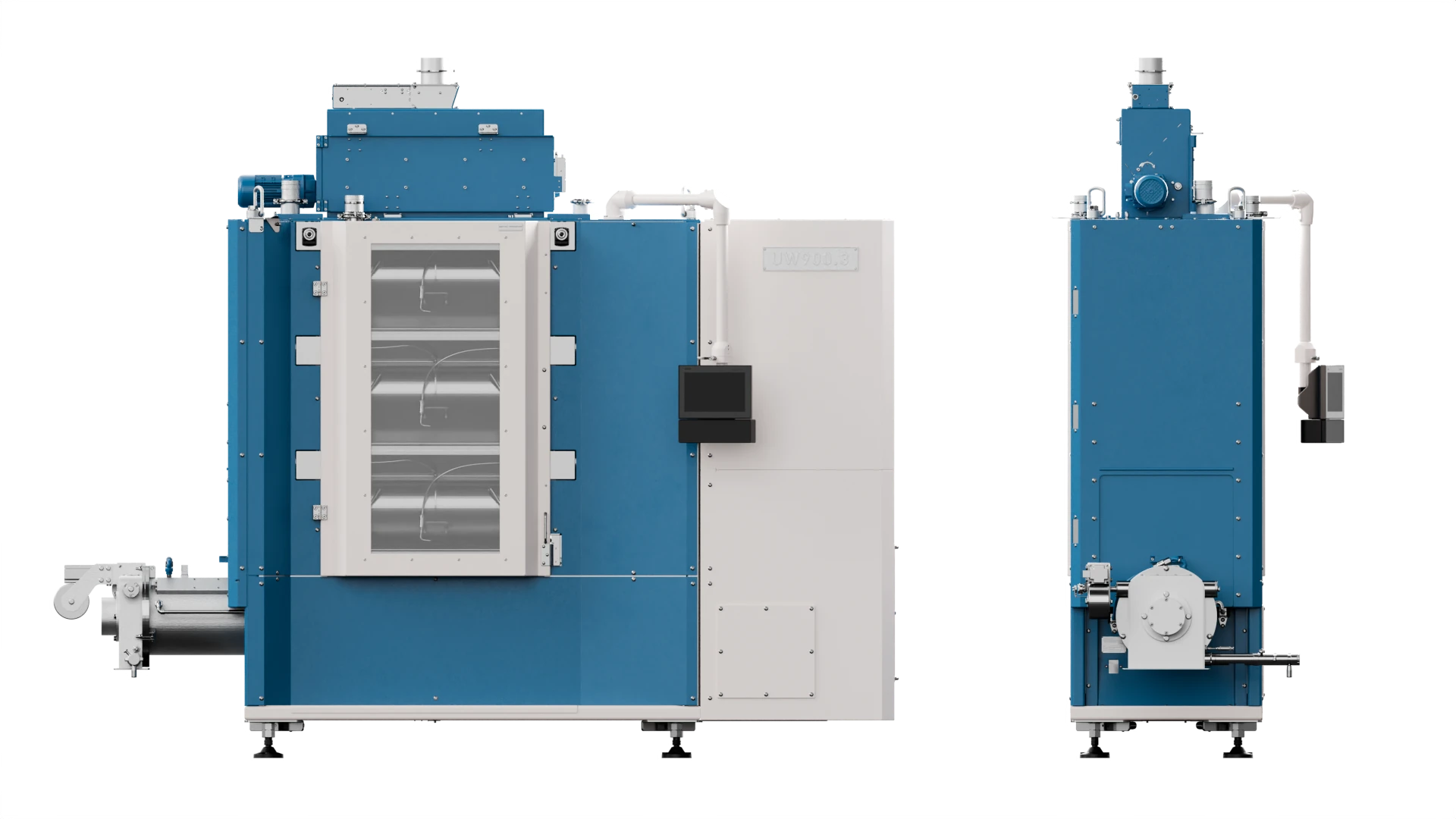

PROBAT UW roll grinders are high‑performance grinding solutions engineered for specialized applications. Designed for maximum flexibility and reliability, they deliver consistently high‑quality results while ensuring exceptional process stability.

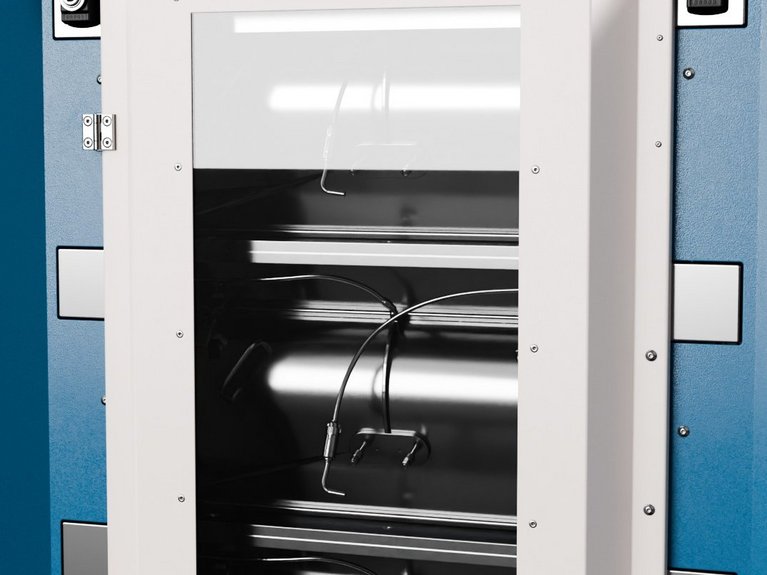

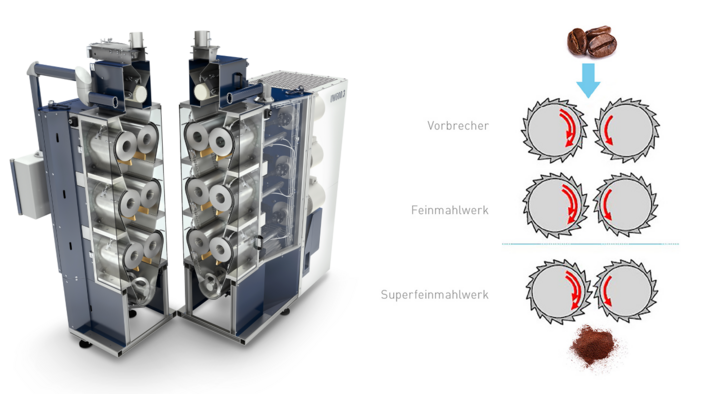

Depending on the required grind size, UW roll grinders can be equipped with two or three pairs of rolls, with each passage using two counter‑rotating grinding rolls. These precision‑engineered rolls, featuring specialized corrugation profiles, progressively grind coffee from coarse to micro‑fine, achieving throughputs of up to 4,000 kg per hour. An integrated secondary densifier provides compaction rates above 30%, enhancing downstream process efficiency.

The UW 300 special grinders take it a step further with frequency-controlled motors on each grinding unit that allow for the independent adjustment of the roll speed. This enables precise control over the particle size spectrum. This advanced system not only makes ultra-fine grinding possible, but also highly reproducible. Additionally, automatic grinding gap adjustment ensures maximum consistency across every batch.

VERSIONS

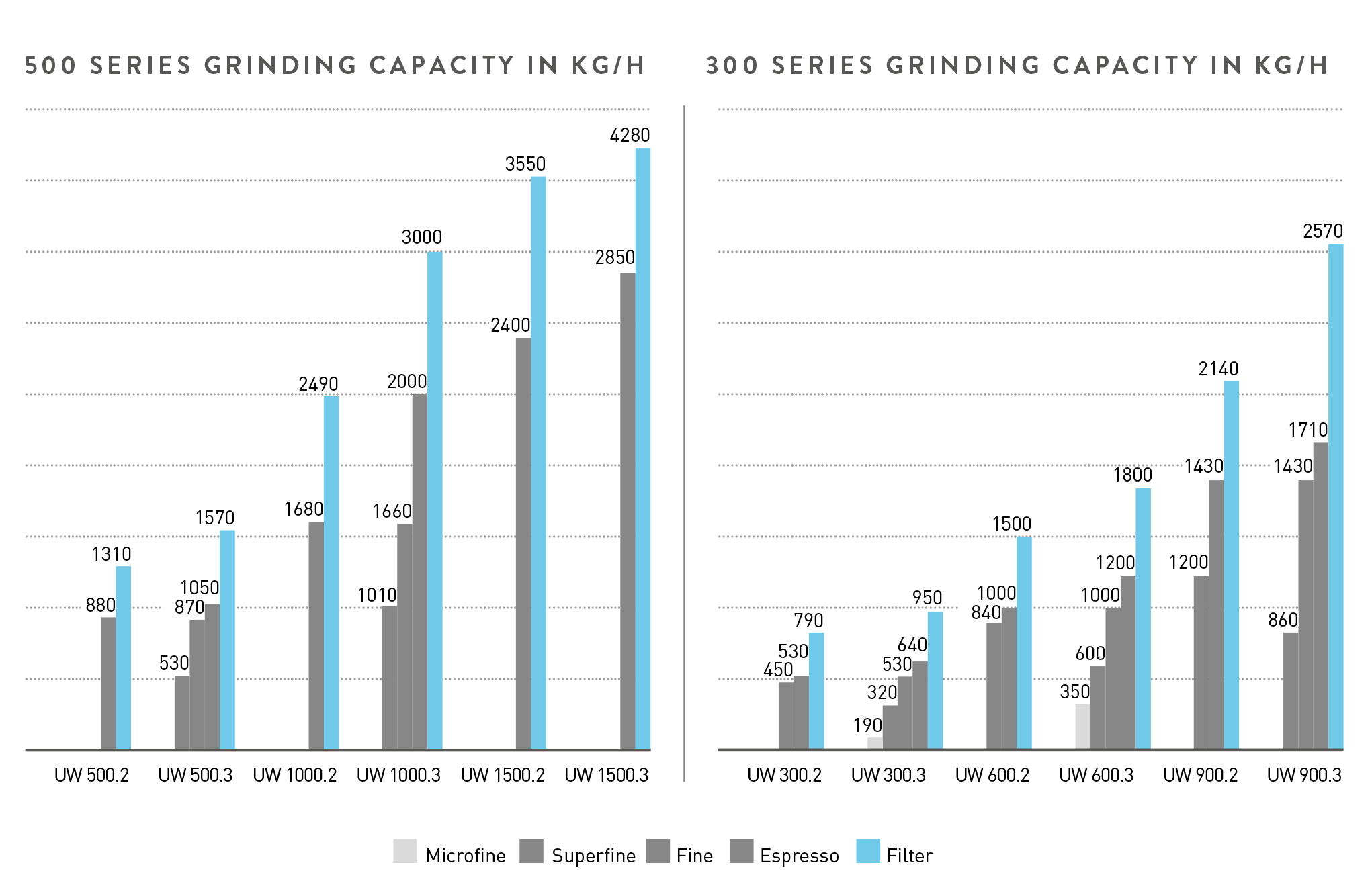

	UW 500.2	UW 500.3	UW 1000.2	UW 1000.3	UW 1500.2	UW 1500.3
Capacity [kg/h]	880–1,310	530–1,570	1,680–2,490	1,010–3000	2,400–3,550	2,850–4280
Grinding Range	Filter–Espresso	Filter–Superfine	Filter–Espresso	Filter–Superfine	Filter–Espresso	Filter–Espresso

	UW 300.2	UW 300.3	UW 600.2	UW 600.3	UW 900.2	UW 900.3
Capacity [kg/h]	450–790	190–950	840–1,500	350 – 1,800	1,200 – 2,140	860 – 2,570
Grinding Range	Fine – Filter	Microfine – Filter	Fine – Filter	Microfine – Filter	Fine – Filter	Superfine – Filter
