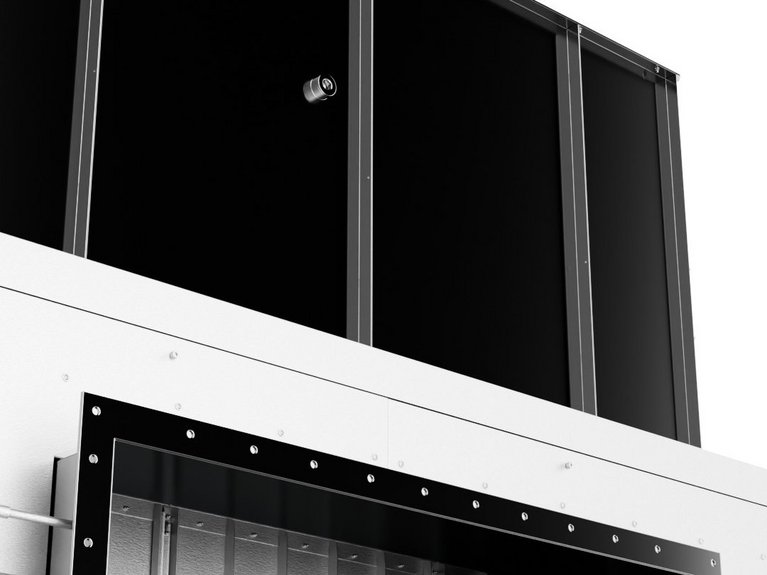

3d rendering of Continuous Roaster Shaft

CRS Continuous Roaster Shaft

Roaster for cocoa beans

Advantages

  • Consistent, High-Quality Roasting Results

    The multi-zone CRS with independent temperature control ensures even heat distribution and precise flavor development across a full range of roast levels.

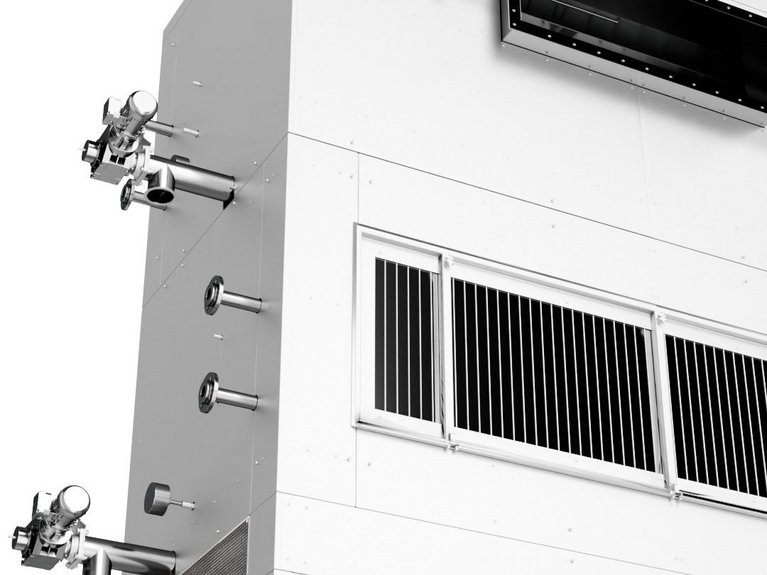

    3d rendering of Continuous Roaster Shaft

  • Enhanced Flavor Profiles

    Optional integration with the Humidity Monitoring Cockpit allows for optimized moisture control, extending the Maillard reaction and unlocking deeper, more distinctive cocoa flavors.

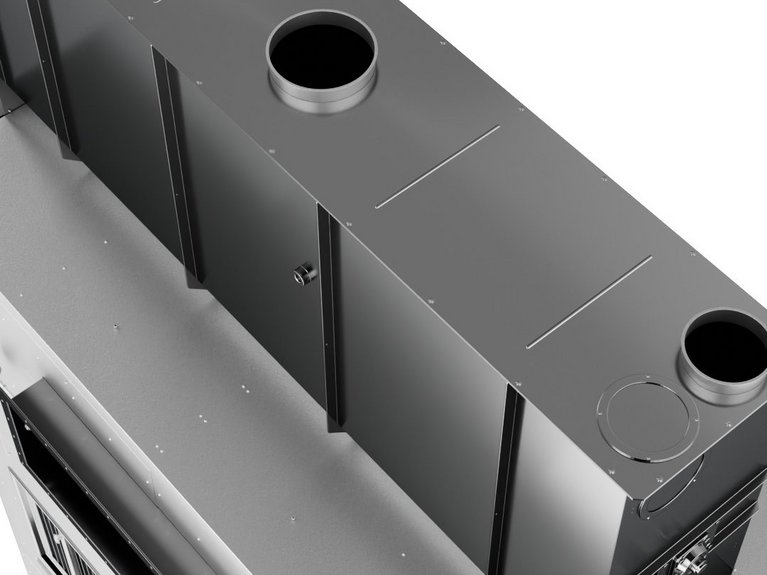

    3d rendering of Continuous Roaster Shaft

  • Flexible and Efficient Process Control

    The system’s modular design, including optional cooling zones and adjustable parameters, enables tailored roasting for different cocoa bean types and product specifications—ideal for premium, continuous production.

    3d rendering of Continuous Roaster Shaft

Built to solve. Designed to deliver.

Engineered for premium cocoa processing, the PROBAT CRS Continuous Roaster Shaft delivers consistent, high-quality results across a full range of roast levels. Designed to bring out the distinctive flavor profiles of individual products, it is the ideal solution for manufacturers seeking precision, efficiency, and flavor excellence in continuous cocoa roasting.


At the heart of the CRS Roasting System are up to four vertically stacked heating zones with independent temperature control and an optional cooling zone for precise roast termination. A compact column of cocoa beans moves downward as hot air alternates from left to right, crossing the bean flow to ensure even heat distribution throughout the entire batch.


Roasting begins with gentle drying at around 100°C, followed by a controlled increase in temperature to develop specific flavor characteristics. When paired with the optional Humidity Monitoring Cockpit, the system enables precise moisture control, allowing the Maillard reaction to be prolonged and deepening the resulting cocoa flavor.


To support strict food safety requirements, a dedicated sterilization step is performed prior to roasting using the PROBAT MDB Microbatch DeBacterizer, which accurately manages all critical process parameters for reliable and consistent debacterization.

3d rendering of Continuous Roaster Shaft

Versions

 CRS 1000CRS 1250
Capacity [kg/h]1,0001,250
