PROBAT

G Series

Drum Roaster

Roasting Time (min):

10–20
Batch Capacity (kg):

20–150
Roasting Capacity (kg/h):

100–450

Advantages

Maximum Reproducibility

The precise control of the air volume flow and the supply air temperature enables a controlled energy input into the coffee beans and guarantees reproducible roasting results.
Maximum Quality

The movement of the coffee beans on defined paths guarantees even mixing of the coffee beans and a homogeneous bean pattern.
Maximum Aroma Flexibility

The optional manual control of the air volume flow using the so-called aroma wheel enables maximum flexibility when developing different aroma profiles (G45 only).
Maximum Individuality

The customization of different design parts rounds off the classic look of the roasting machines and makes each one unique.

Built to solve. Designed to deliver.

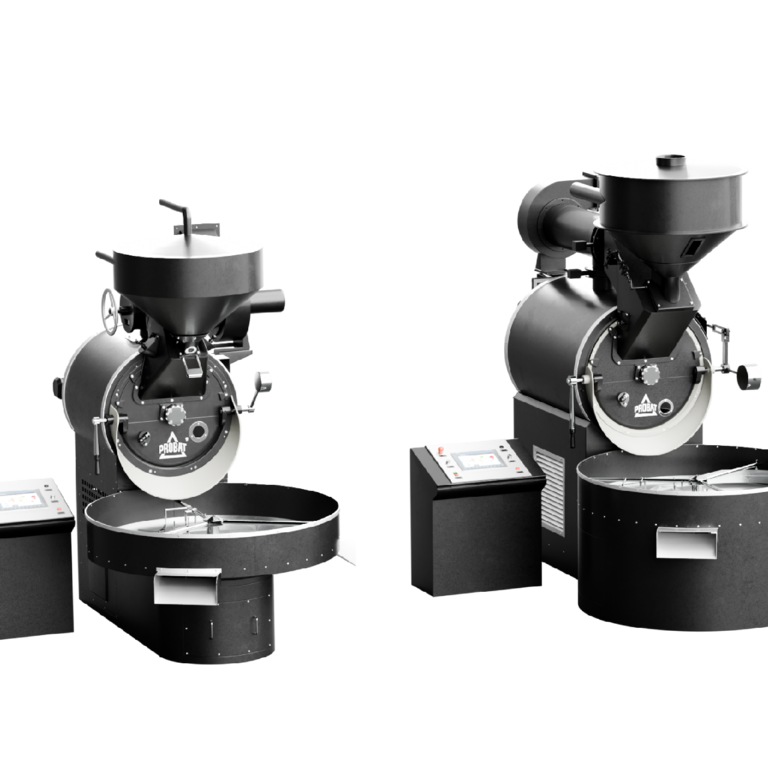

With their round contours and clean lines, the PROBAT G Series roasters are as visually striking as they are technically advanced. Designed for medium-sized roasting operations, these machines combine a sophisticated design with exceptional roasting performance, making them the perfect choice for businesses that value form and function equally.

With batch sizes ranging from 45 to 150 kg, the G Series consistently produces high-quality roasting results. Heat is transferred primarily via convection, with a controlled flow of hot air supplied through the rotating drum. This method delivers uniform bean development and excellent reproducibility across batches.

For added flexibility, the G45 model — visually aligned with the iconic UG series — offers manual airflow control, enabling roasters to create unique profiles and fine-tune flavour development. Standard features across all G models include the automatic emptying of the bean container, roasting drum and cooling sieve, which streamlines workflow and boosts efficiency.

Versions

	Roasting time [min]	Roasting capacity [kg/h]	Batch capacity [kg]	Products	Heating
PROBAT G45	10–20	100–150	20–55	Coffee, cocoa, nuts	Natural gas, propane, hydrogen
PROBAT G60	10–20	100–195	20–65	Coffee, cocoa, nuts	Natural gas, propane, hydrogen
PROBAT G75	10–20	125–240	25–80	Coffee, cocoa, nuts	Natural gas, propane, hydrogen
PROBAT G90	10–20	150–285	30–95	Coffee, cocoa, nuts	Natural gas, propane, hydrogen
PROBAT G120	10–20	240–360	60–120	Coffee, cocoa, nuts	Natural gas, propane, hydrogen
PROBAT G150	10–20	240–450	60–150	Coffee, cocoa, nuts	Natural gas, propane, hydrogen

* This information refers to coffee and varies depending on the processed product

SOFTWARE

Productivity is the measure of all manufacturing processes, including food processing. PROBAT control solutions ensure that machines and plants all over the world produce coffee, cocoa, chocolate and snack foods of the highest quality day after day - with optimum performance, maximum energy efficiency and plant availability.

SERVICE

For PROBAT, the customer and his needs are always in the focus. Constant communication is the key to our success. This also applies to our service, where we continuously keep an eye on the entire product life cycle and the service-relevant life phases of our machines and plants.

ENVIRONMENTAL TECHNOLOGIES

3d rending of NEPTUNE Series for Environmental technology

PROBAT's pioneering environmental technologies focus on saving energy and maximizing cleaning performance. We support our customers worldwide in designing sustainable production processes by providing solutions for exhaust air treatment and the utilization of excess heat from process exhaust air.
