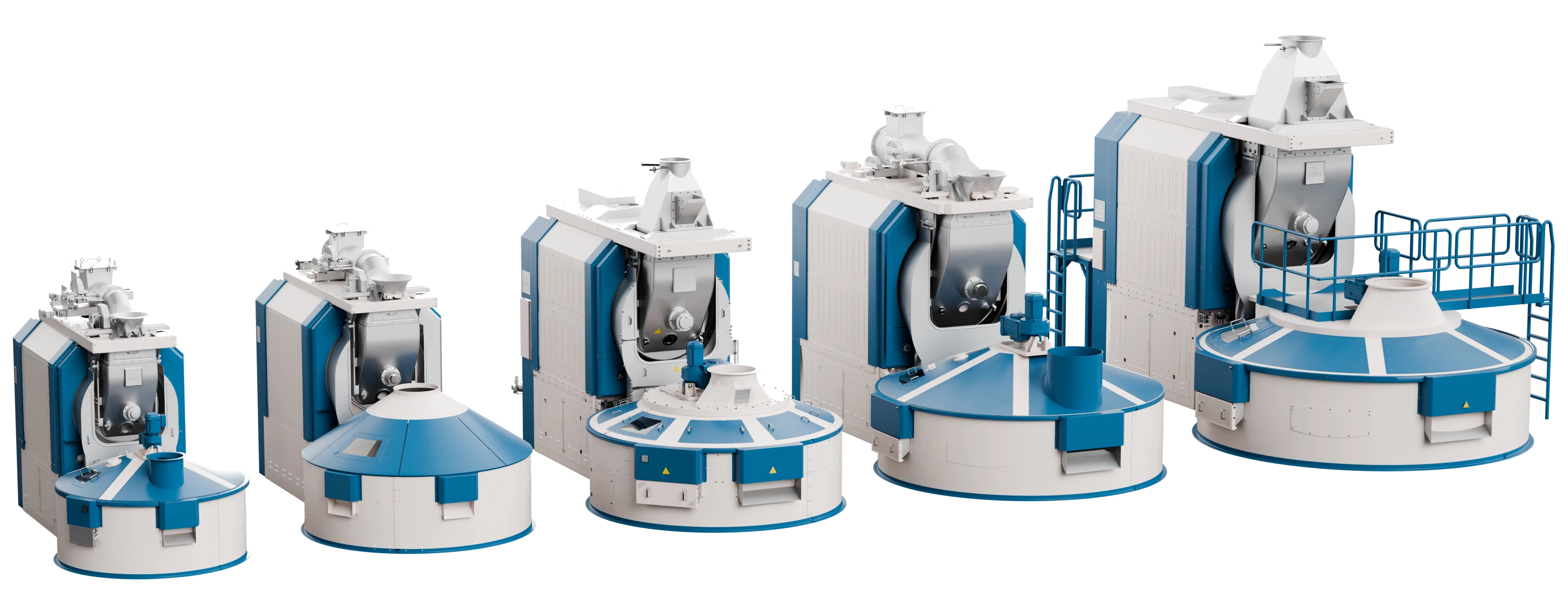

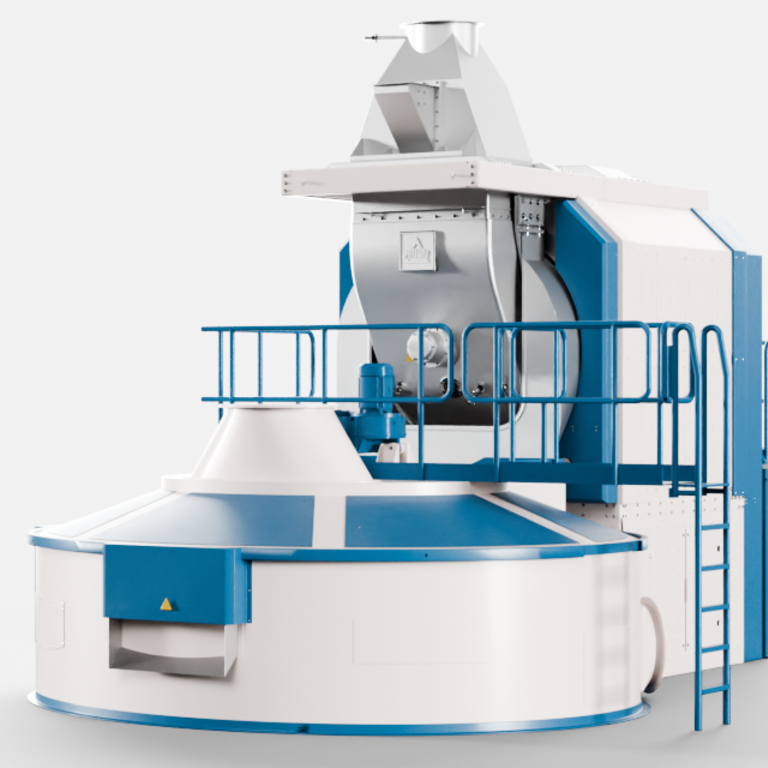

Neptune Series

Drum Roaster

Roasting Time (min):

6–20
Batch Capacity (kg):

110–880
Roasting Capacity (kg/h):

1,000–4,000

Advantages

Maximum Aroma Flexibility

With roasting times of 6 to 20 minutes and an extended batch size range, a wide variety of roasting profiles can be achieved, resulting in diverse aroma profiles.
Maximum Reproducibility

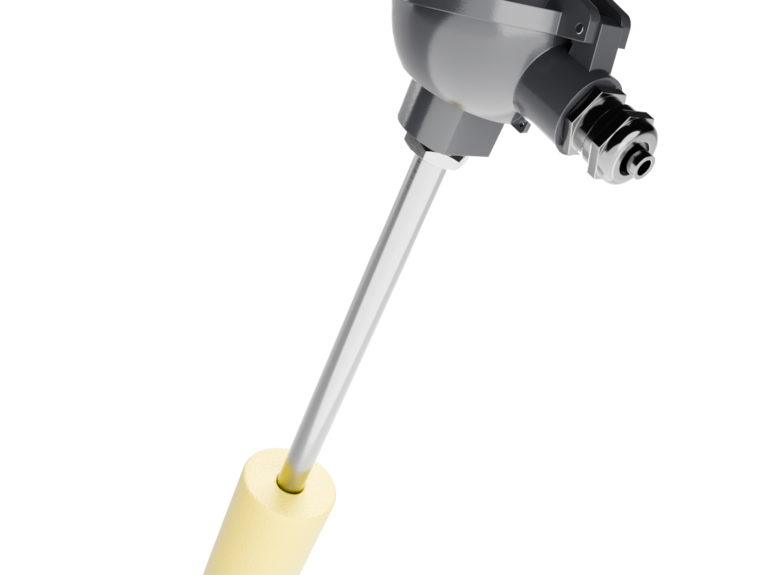

Precise control of air volume flow and supply air temperature ensures controlled energy input to the coffee beans, guaranteeing consistent roasting results.
Maximum Quality

The coffee beans move on defined paths, ensuring even mixing and a homogeneous bean pattern.
Maximum Availability

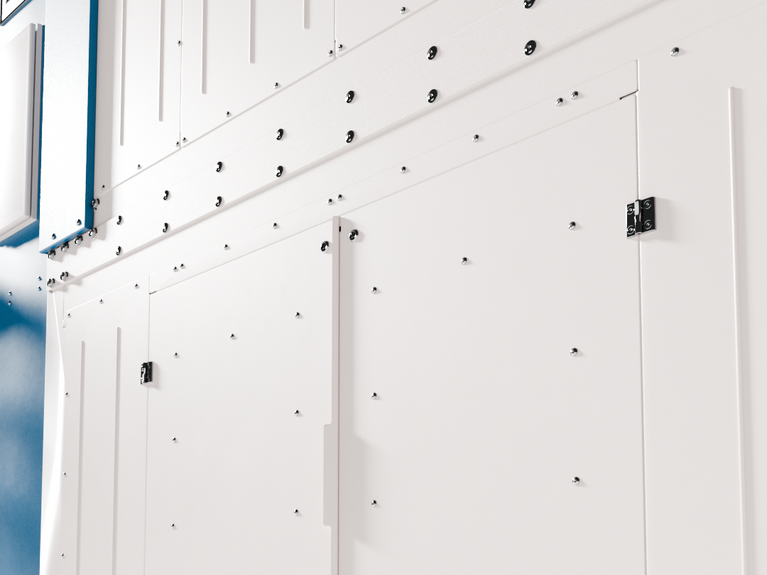

The machine components have an easy-to-clean design for easy accessibility and maintenance, thus guaranteeing maximum machine uptime.
Maximum Energy Efficiency

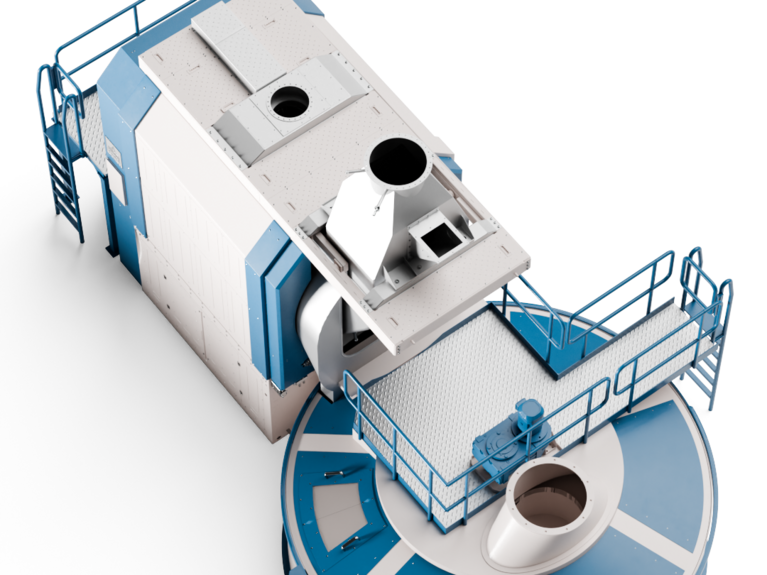

The integrated partial recirculation system utilizes excess energy from the process exhaust air to ensure an energy-efficient roasting process, reducing energy consumption by up to 30% compared to a machine without partial recirculation.

Built to solve. Designed to deliver.

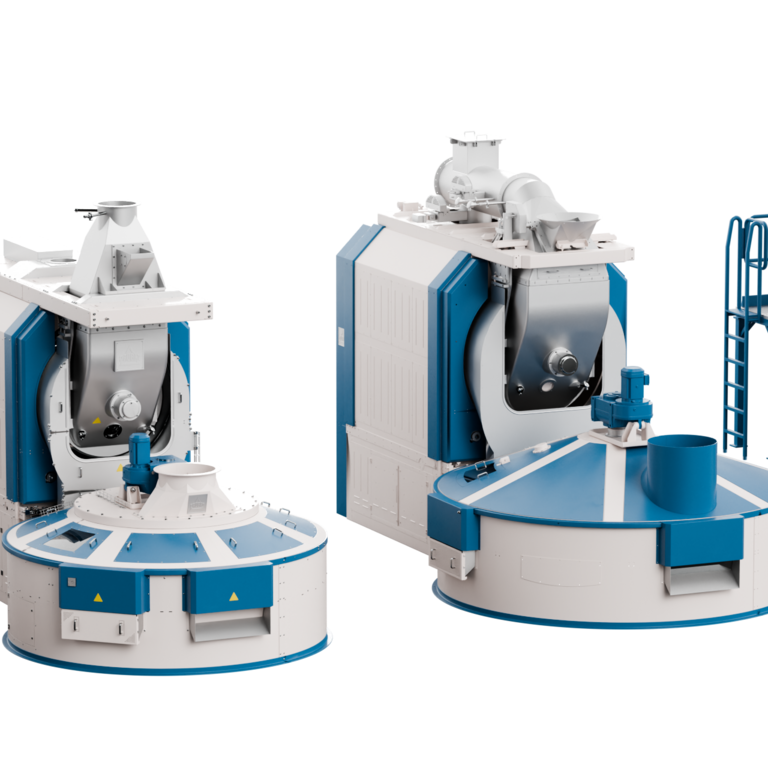

Engineered for excellence, the NEPTUNE series combines cutting-edge hygienic design with exceptional process reliability and flexibility. Designed for customers with the highest standards, these roasters offer unparalleled modularity, sustainability and ease of maintenance, making them the ideal solution for modern coffee production environments.

The NEPTUNE 4000 is the largest drum roaster of its kind on the global market. It boasts an impressive batch size range of 440–880 kg and roasting times of 6–20 minutes. With a capacity of up to four tons of green coffee per hour, it sets new standards for industrial coffee roasting.

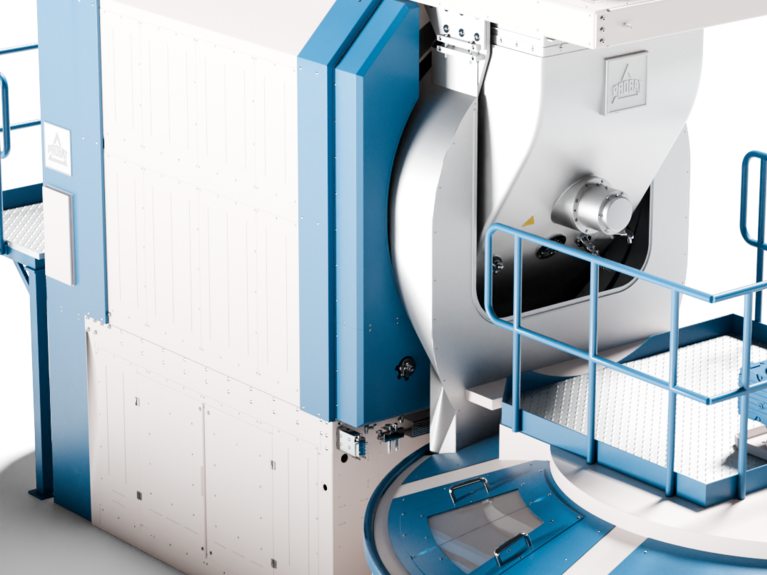

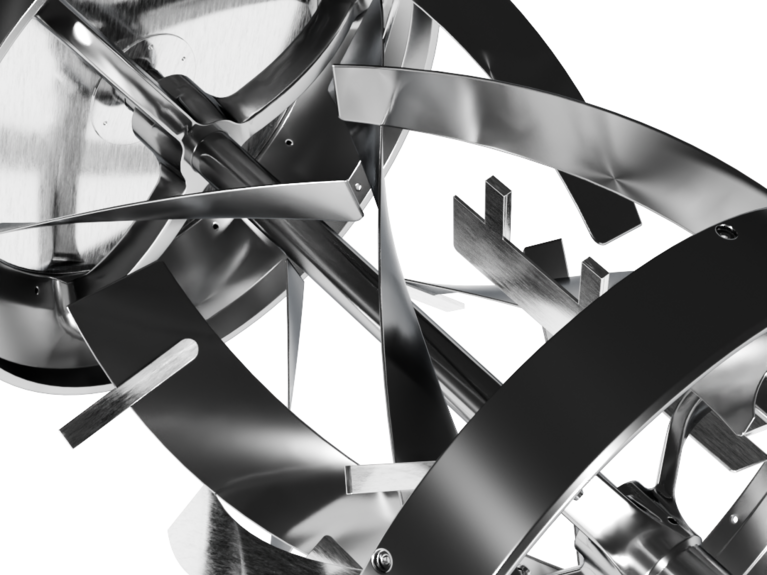

During the roasting process, heated supply air is directed through and around the rotating drum. Inside, precisely angled shovel blades ensure the beans move uniformly. Heat is transferred primarily through convection, delivering consistent, reproducible results and outstanding coffee quality, batch after batch.

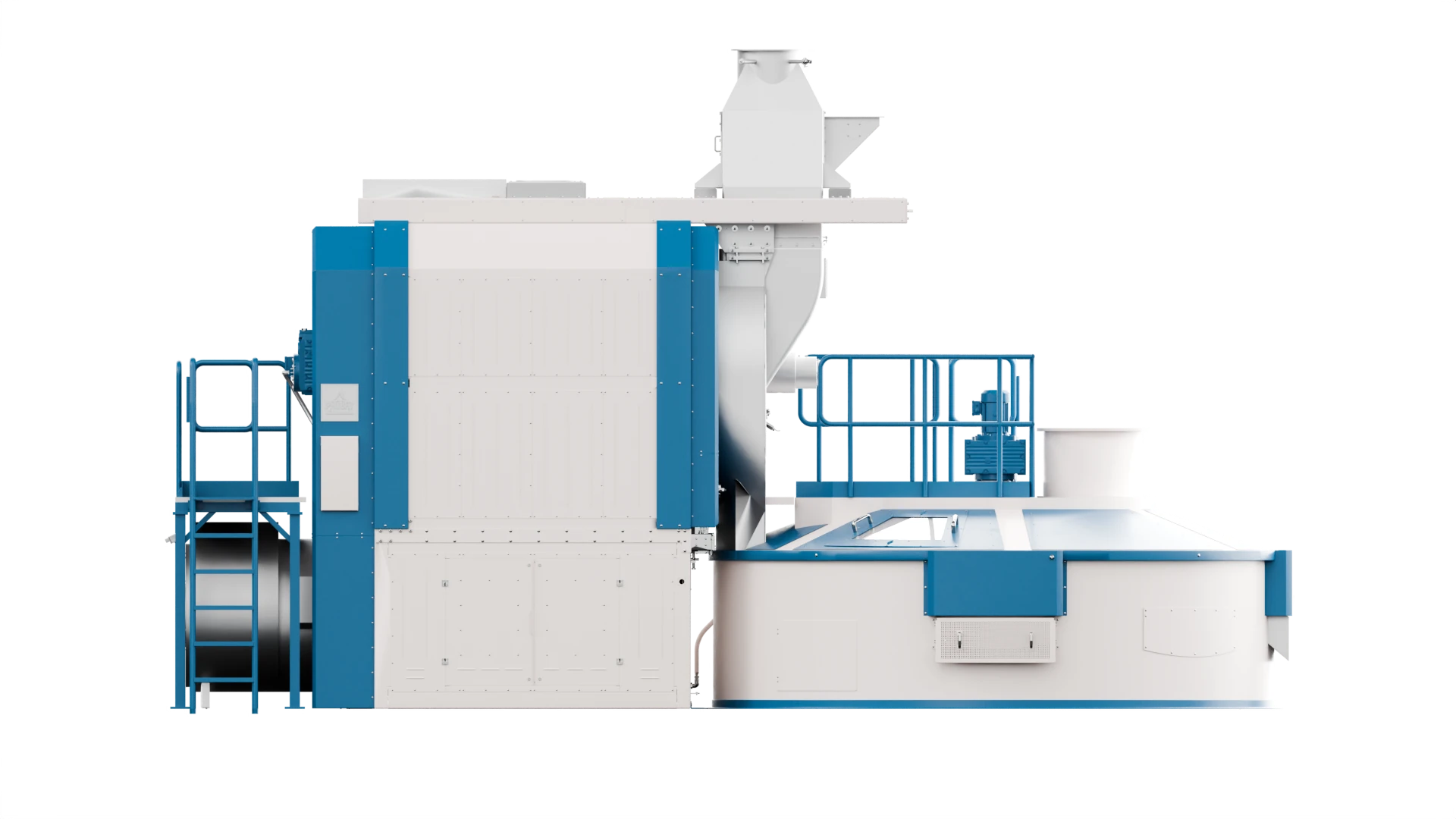

rendering of NEPTUNE 4000 Coffee Roaster

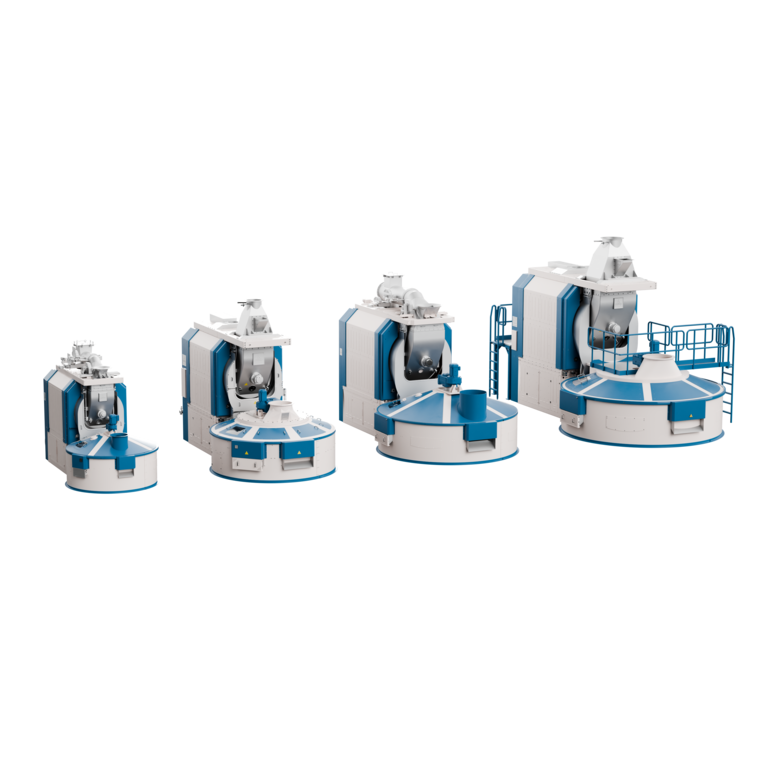

VERSIONS

	Roasting time [min]	Roasting capacity [kg/h]	Batch capacity [kg]	Products	Heating
NEPTUNE 1000	6–20	1,000	110–220	Coffee	Natural gas, propane, electricity, hydrogen
NEPTUNE 2000	6–20	2,000	220–440	Coffee	Natural gas, propane, electricity, hydrogen
NEPTUNE 3000	6–20	3,000	480–640	Coffee	Natural gas, propane, electricity, hydrogen
NEPTUNE 4000	6–20	4,000	440–880	Coffee	Natural gas, propane, electricity, hydrogen

SOFTWARE

Productivity is the measure of all manufacturing processes, including food processing. PROBAT control solutions ensure that machines and plants all over the world produce coffee, cocoa, chocolate and snack foods of the highest quality day after day - with optimum performance, maximum energy efficiency and plant availability.

SERVICE

For PROBAT, the customer and his needs are always in the focus. Constant communication is the key to our success. This also applies to our service, where we continuously keep an eye on the entire product life cycle and the service-relevant life phases of our machines and plants.

ENVIRONMENTAL TECHNOLOGIES

PROBAT's pioneering environmental technologies focus on saving energy and maximizing cleaning performance. We support our customers worldwide in designing sustainable production processes by providing solutions for exhaust air treatment and the utilization of excess heat from process exhaust air.
