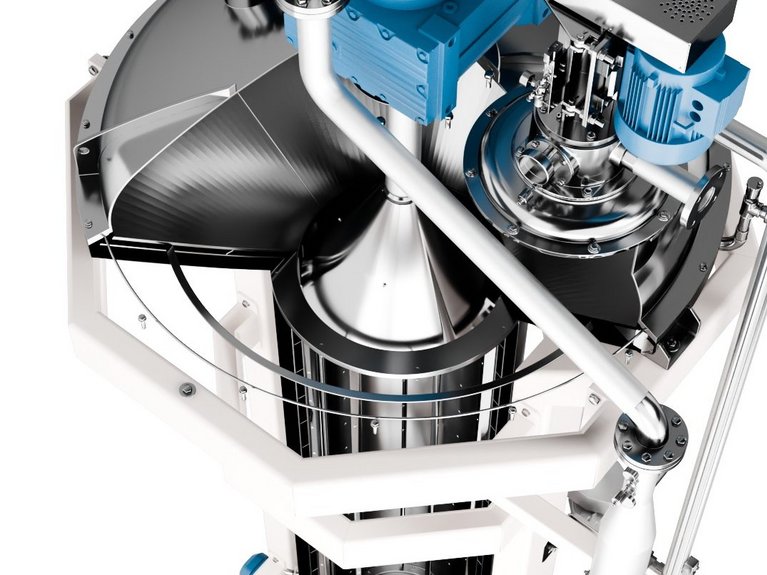

3rd rendering side view of a TFC Thin Film evaporator Compound

TFC Thin Film evaporator Compound

Thin film treatment of chocolate and compound

Advantages

  • Maximum Product Quality

    Effective removal of moisture, volatiles and acids ensures significantly improved texture and flavor, resulting in a smoother, cleaner-tasting chocolate or compound mass for maximum product quality.

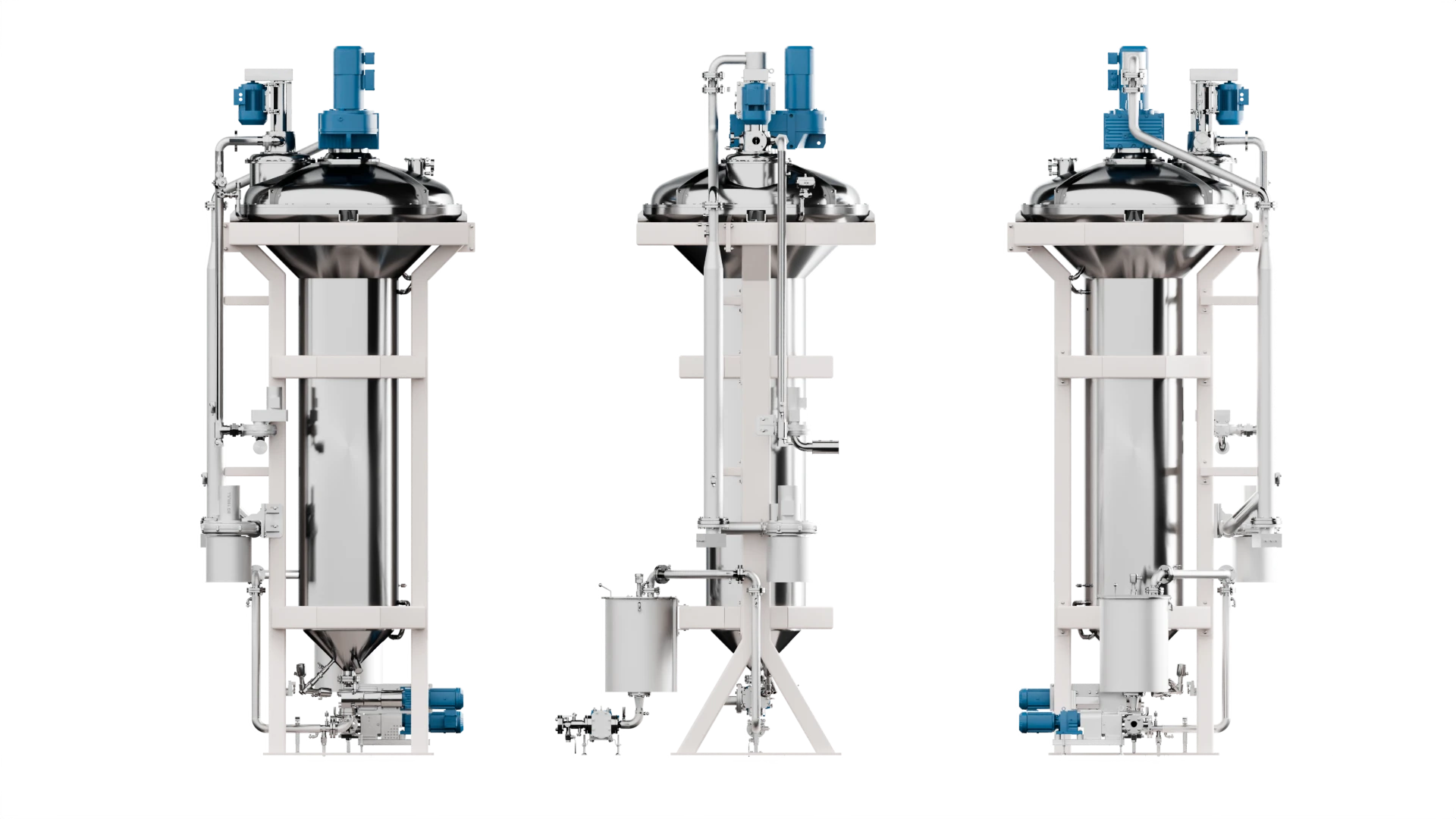

    3rd rendering side view of a TFC Thin Film evaporator Compound

  • Maximum Performance

    Thin film design maximizes surface area and residence time, allowing intensive treatment in a compact unit with fast throughput for maximum performance.

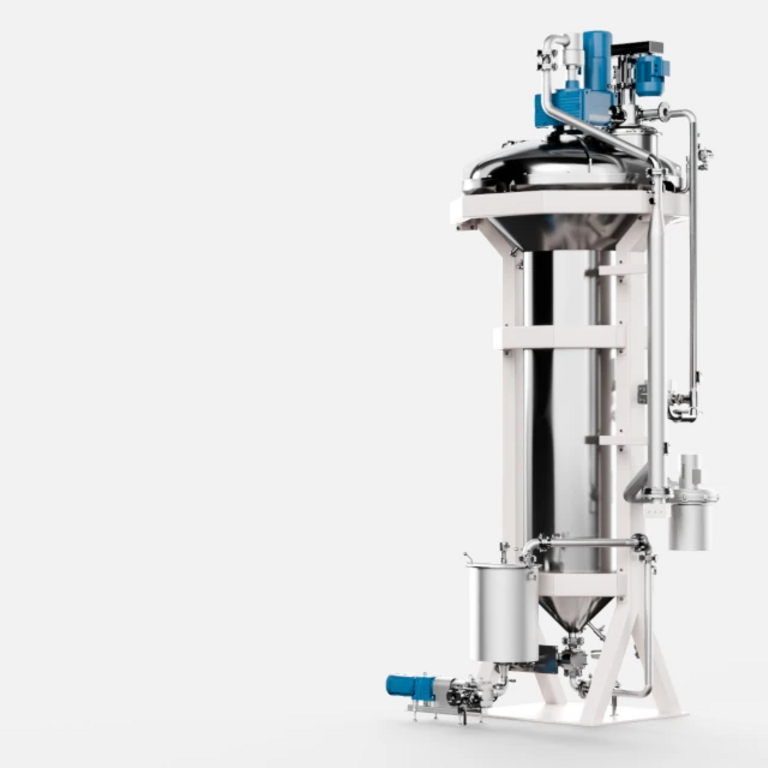

    3rd rendering side view of a TFC Thin Film evaporator Compound

  • Maximum Throughput

    Designed as a stand-alone unit, the TFC easily integrates downstream of the BMV Batch Mixer Vertical and BMC Ball Mill Chocolate, supporting a streamlined, fully continuous process.

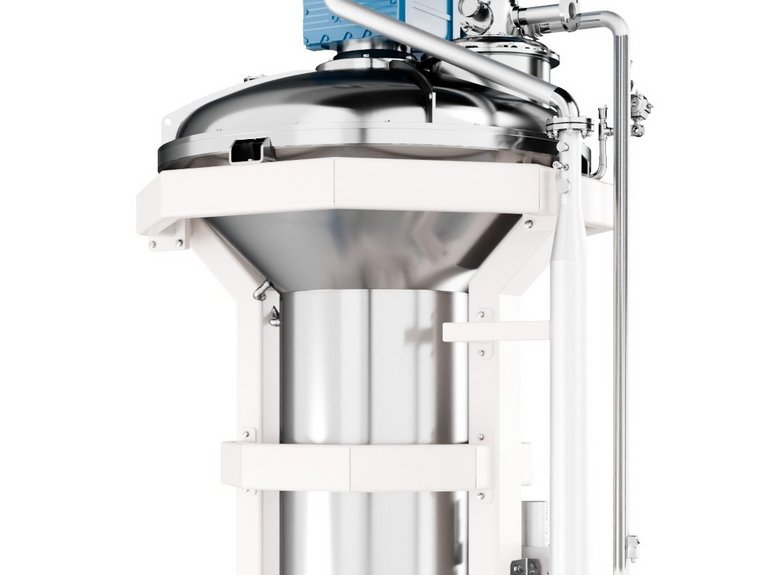

    3rd rendering side view of a TFC Thin Film evaporator Compound

Built to solve. Designed to deliver.

The Duyvis TFC Thin Film Evaporator Compound is designed for efficient thin film treatment of chocolate and compound. Using a combination of shear and thermal degassing, the TFC effectively removes moisture, volatiles and acids – improving product texture and eliminating unwanted off-flavors. Designed for seamless integration into a continuous QCHOC production line, the TFC operates as a stand-alone unit positioned downstream of the BMV Batch MIxer Vertical and two or three BMC Ball Mill Chocolate.

The product enters the TFC reactor from the top and spreads evenly along the reactor wall, forming a uniformly thin film. This film is continuously sheared by a rotating element and maintained at a uniform thickness as it moves downwards towards the outlet. The large surface area allows intensive treatment within a short residence time, while the precisely controlled surface heating facilitates efficient removal of volatiles from the chocolate or compound mass.

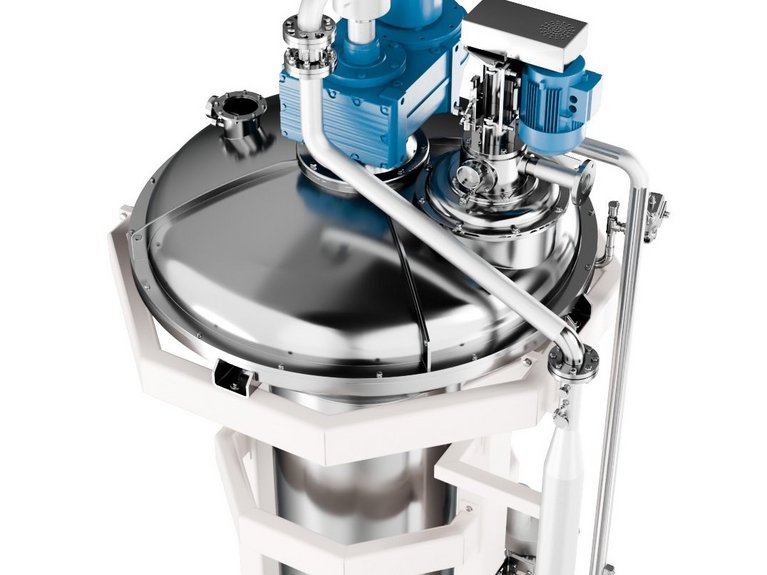

3rd rendering side view of a TFC Thin Film evaporator Compound
 TFC 1000
Capacity [kg/h]500–1,000
Connected Load [kW]74
