PRF Pre-Refiner

Pre-Refiner for chocolate processing

Advantages

  • Maximum Performance

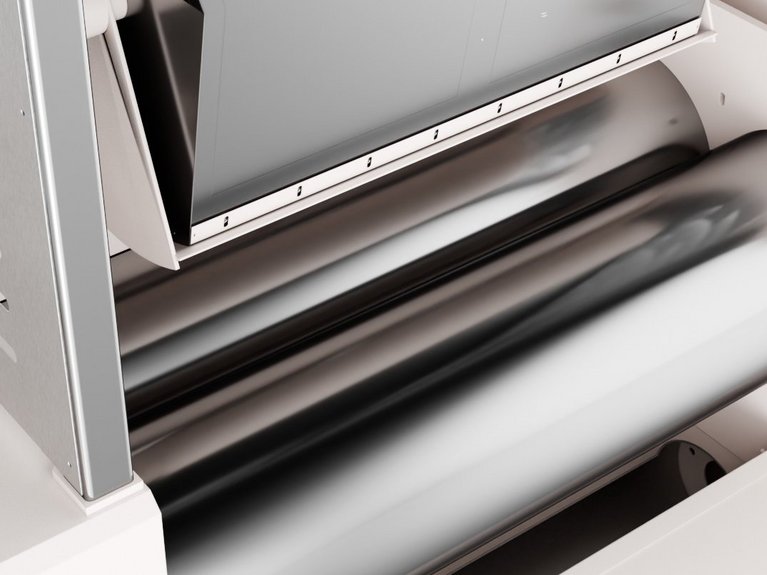

    Specially cast rolls provide enhanced grinding efficiency, ensuring superior grinding performance.

    3d rendering of Pre-Refiner

  • Maximum Reproducibility

    The patented inline gap adjustment system allows real-time control of fineness, plasticity, and throughput for product consistency and maximum reproducibility.

    3d rendering of Pre-Refiner

  • Maximum Availability

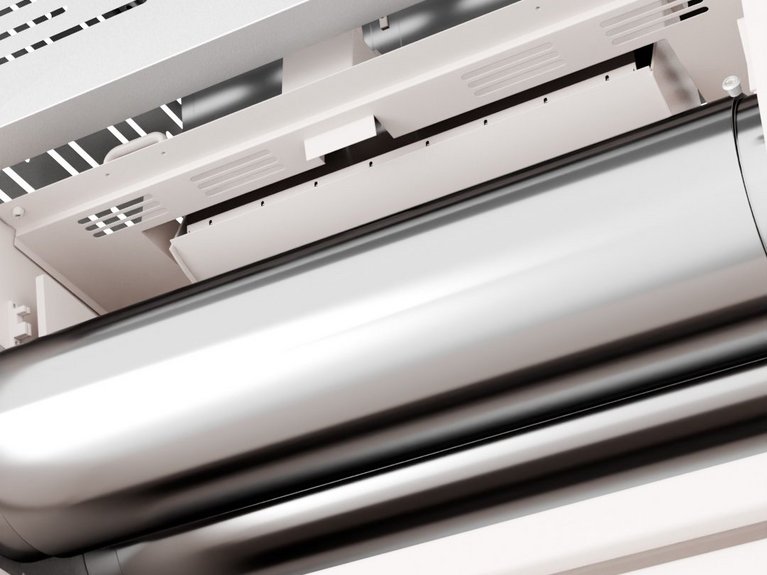

    Hydraulic roller protection ensures minimal downtime for maintenance and operation, guaranteeing maximum availability.

    3d rendering of Pre-Refiner

Built to solve. Designed to deliver.

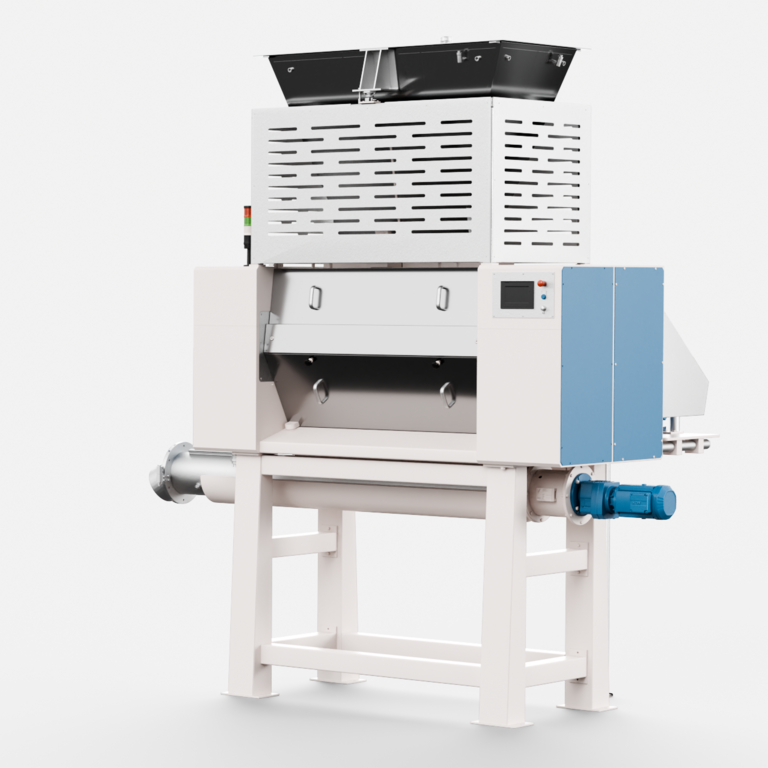

The Heidenauer PRF Pre-Refiner is a two-roll refiner equipped with specially cast rolls designed to deliver superior grinding performance while minimizing wear. It provides an optimal solution for the consistent pre-refining of chocolate paste, ensuring ideal mass plasticity and fineness for the subsequent fine refining process.

The PRF prepares chocolate paste for the FRF Fine Refiner by reducing particle size, particularly crystal sugar, to a target fineness of 150–300 µm (depending on recipe and raw materials). Its patented inline gap adjustment system allows real-time control of fineness, plasticity, and throughput without machine stoppage. Hydraulic roller protection minimizes downtime.

3d rendering of Pre-Refiner

VERSIONS

 PRF 4000PRF 6000
Throughput @ 200 µm [KG/H]*4,0006,000
Connected Load [kW]4048

*This information refers to chocolate and varies depending on the processed product
